Mathematical modelling and design of snap-action diaphragms

Mirza, M. K. (1983). Mathematical modelling and design of snap-action diaphragms. (Unpublished Doctoral thesis, The City University)

Abstract

Mathematical models have been developed and applied to the analysis and design of snap-action diaphragms that can be considered axi-symmetric. An efficient finite element formulation based on axi-symmetric thin shell theory and employing two noded line elements has been produced for studying these unstable devices. The
finite element model was validated by comparison with experimental results on a number of diaphragms, for both pressure loadings and point loadings.

A systematic study of two types of snap-action diaphragms (conical and spherical) has been conducted using the finite element model. Non-dimensional design curves have been produced for conical diaphragms and from these a design methodology has been developed. This methodology does not require the use of a computer but it is based on the computer generated design curves.

Publication Type: Thesis (Doctoral)
Subjects: Q Science > QA Mathematics
T Technology > TA Engineering (General). Civil engineering (General)
Departments: School of Science & Technology > Department of Engineering
School of Science & Technology > School of Science & Technology Doctoral Theses
Doctoral Theses

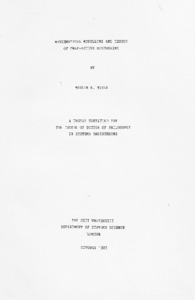

[thumbnail of Mirza thesis 1983_Redacted PDF-A.pdf]
